JW823 HIGH SPEED WATER JET LOOM / JW823高速喷水织机

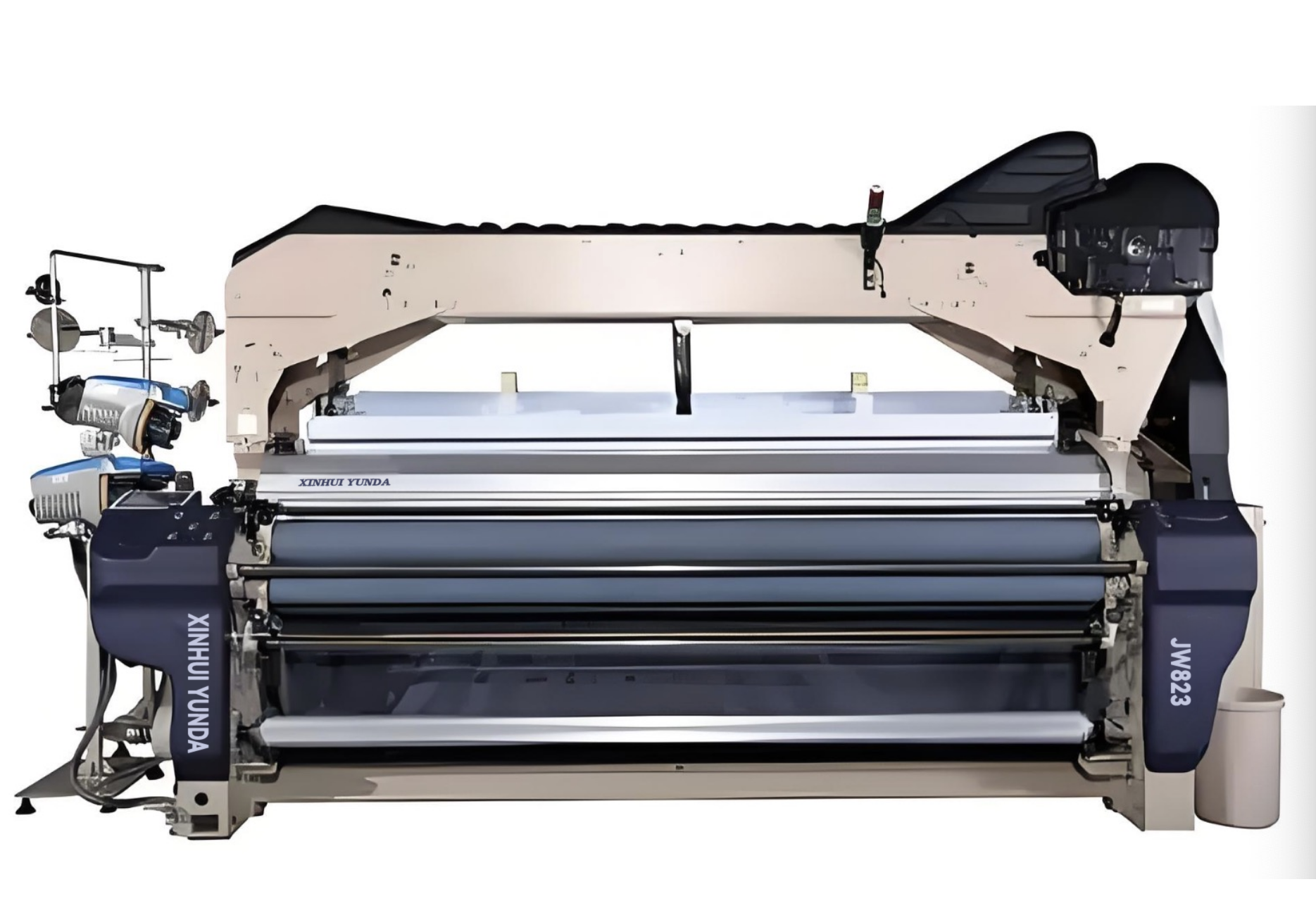

JW823 HIGH SPEED WATER JET LOOM

The JW823 model is designed by optimizing the main component and frame structure, improving the beating-up, let-off mechanism and take-up mechanism. Installing an assistant device on the let-off mechanism ensures stable running, reduces vibration and noise, increases efficiency, and enlarges the weaving range.

JW823 features a more robust fabric support structure and a take-up roller structure that is more tensile and more resistant to fabric slippage. The stable warp opening not only reduces the marks of various fabric and makes high-tension high-weft fabric easier to weave.

Key Features:

• Strengthened beam support, more stable frame, less vibration
• Optimized main components and frame structure
• Improved beating-up and let-off mechanism
• Assistant device on let-off mechanism for stable running
• Reduced vibration and noise, increased efficiency
• Enlarged weaving range for various fabric types
• Robust fabric support structure
• Tensile take-up roller resistant to fabric slippage
• Stable warp opening for high-tension high-weft fabric

Optional Configurations:

• Let-off: Mechanical let-off / Electronic let-off
• Take-up: Mechanical take-up / Electronic take-up
• Shedding: Crank shedding with 8 lever maximum / Cam motion with 14 lever maximum / Dobby with 16 lever maximum
• Optional reed width: 135, 150, 170, 190, 210, 230, 260, 280, 300, 320, 340, 360 CM

Technical Specifications:

• Weft density range: 4-100 pick/cm (depends on actual fabric structure and yarn count)
• Maximum speed: 900 RPM (depends on actual fabric type and weaving environment)
• Heald frame: crank 2-8 shafts / cam 2-14 shafts / dobby 16 shafts
• Install power: 1.5kW - 5.4kW

JW823 高速喷水织机

JW823型喷水织机通过优化主要部件和机架结构设计，改进了打纬、送经和卷取机构。在送经机构上安装辅助装置，确保运行稳定，减少振动和噪音，提高效率并扩大织造范围。

JW823设计了更坚固的织物支撑结构和更具拉伸性、更抗织物滑移的卷取辊结构。稳定的经纱开口不仅减少各种织物的筘痕，使高张力高纬密织物更易于织造。

主要特点：

• 加固横梁支撑，机架更稳固，振动更小
• 优化主要部件和机架结构
• 改进打纬和送经机构
• 送经机构辅助装置确保运行稳定
• 减少振动和噪音，提高效率
• 扩大织造范围，适用多种织物
• 坚固的织物支撑结构
• 拉伸性卷取辊，抗织物滑移
• 稳定经纱开口，适合高张力高纬密织物

可选配置：

• 送经：机械送经 / 电子送经
• 卷取：机械卷取 / 电子卷取
• 开口：曲柄开口最多8片综 / 凸轮开口最多14片综 / 多臂开口最多16片综
• 可选筘幅：135、150、170、190、210、230、260、280、300、320、340、360 CM

技术参数：

• 纬密范围：4-100根/厘米（取决于实际织物结构和纱线支数）
• 最高转速：900转/分钟（取决于实际织物类型和织造环境）
• 综框：曲柄2-8片 / 凸轮2-14片 / 多臂16片
• 装机功率：1.5kW - 5.4kW

Specifications / 配置清单
