JW408 HIGH SPEED WATER JET LOOM / JW408高速喷水织机

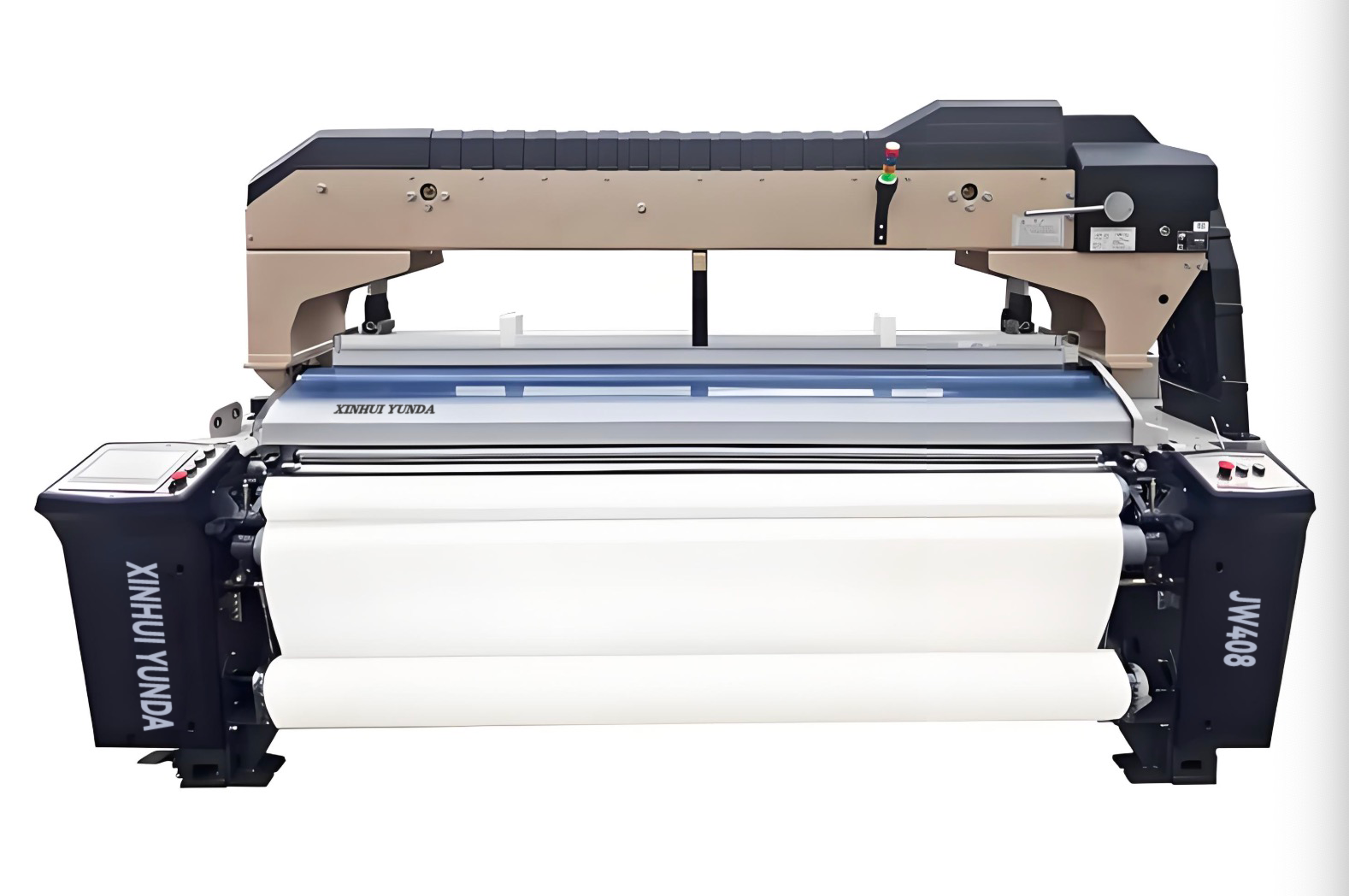

JW408 HIGH SPEED WATER JET LOOM

Use integrated wall boards to improve the frame structure, beat-up mechanism, and shedding. Through optimized design, the high-speed performance and stability of the loom are significantly improved compared to the original model.

Key Features:

• The optimized design of the weft insertion system improves the efficiency of weft insertion and adapts to high-speed insertion
• Adopt "U" type beat-up shaft and special beat-up balance system
• Multichannel reinforced support base and centralized lubrication system increase the beating force and improve wear resistance
• Increased using life of the loom through improved beat-up shaft design
• Lower the center of gravity of the loom for improved stability
• Improved warp position line and eccentric rocking shaft design structure
• Greatly improved loom operability

JW408 高速喷水织机

采用一体化墙板改善机架结构、打纬机构和开口机构。通过优化设计，织机的高速性能和稳定性较原机型显著提升。

主要特点：

• 优化的引纬系统设计提高了引纬效率，适应高速引纬
• 采用"U"型打纬轴和特殊打纬平衡系统
• 多通道加强支撑座和集中润滑系统，增大打纬力并改善耐磨性
• 改进的打纬轴设计延长织机使用寿命
• 降低织机重心，提高稳定性
• 改善经纱位置线和偏心摇轴设计结构
• 大幅提升织机操作性

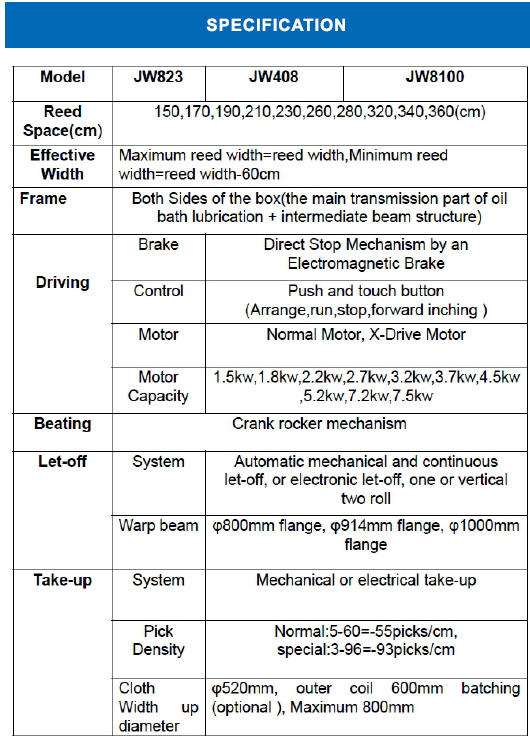

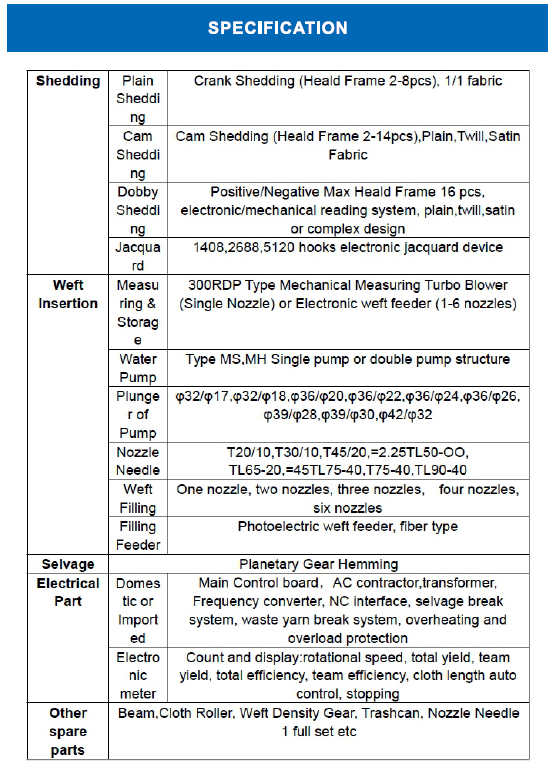

Specifications / 配置清单
