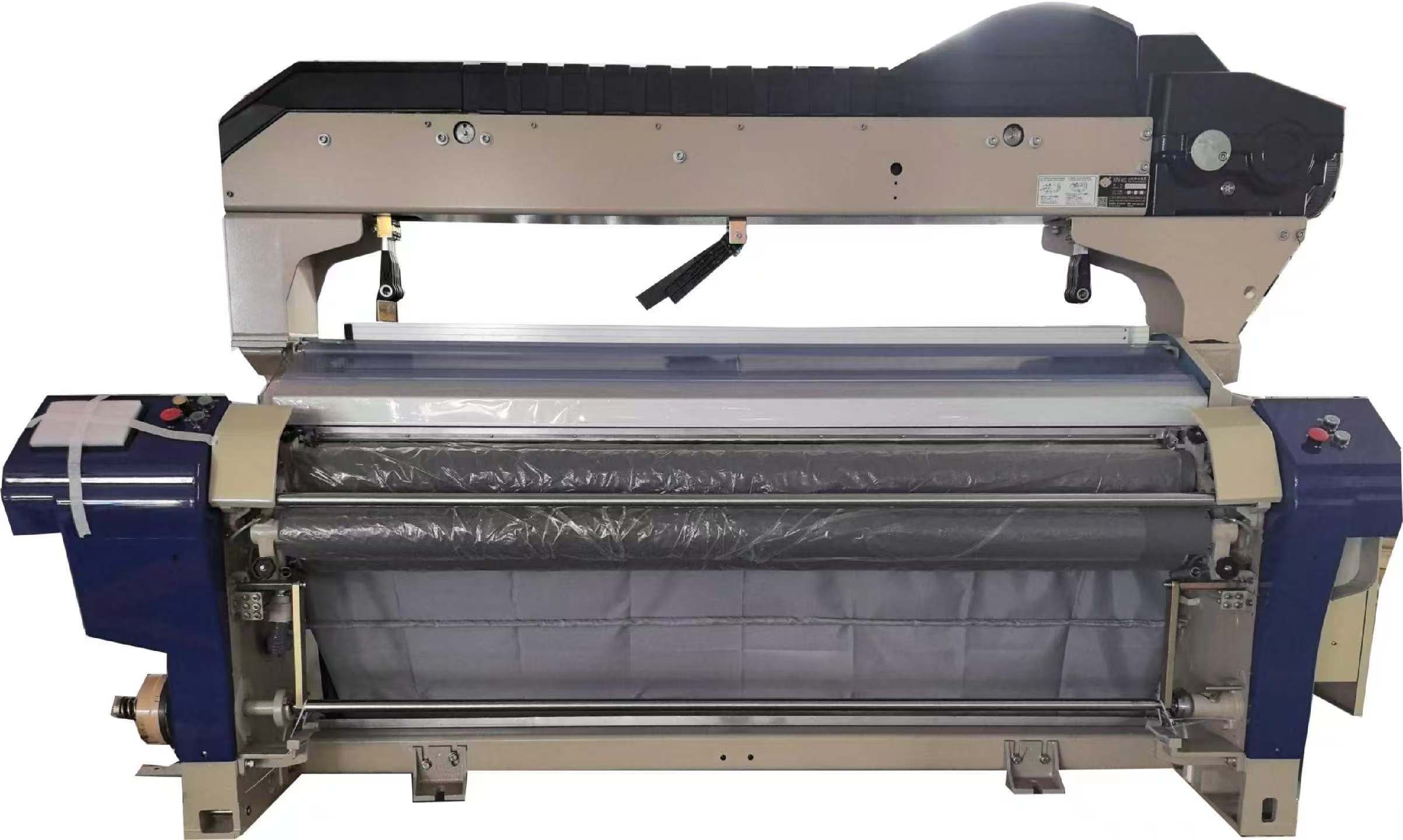

JW8100 HIGH SPEED HEAVY WATER JET LOOM / JW8100高速重磅喷水织机

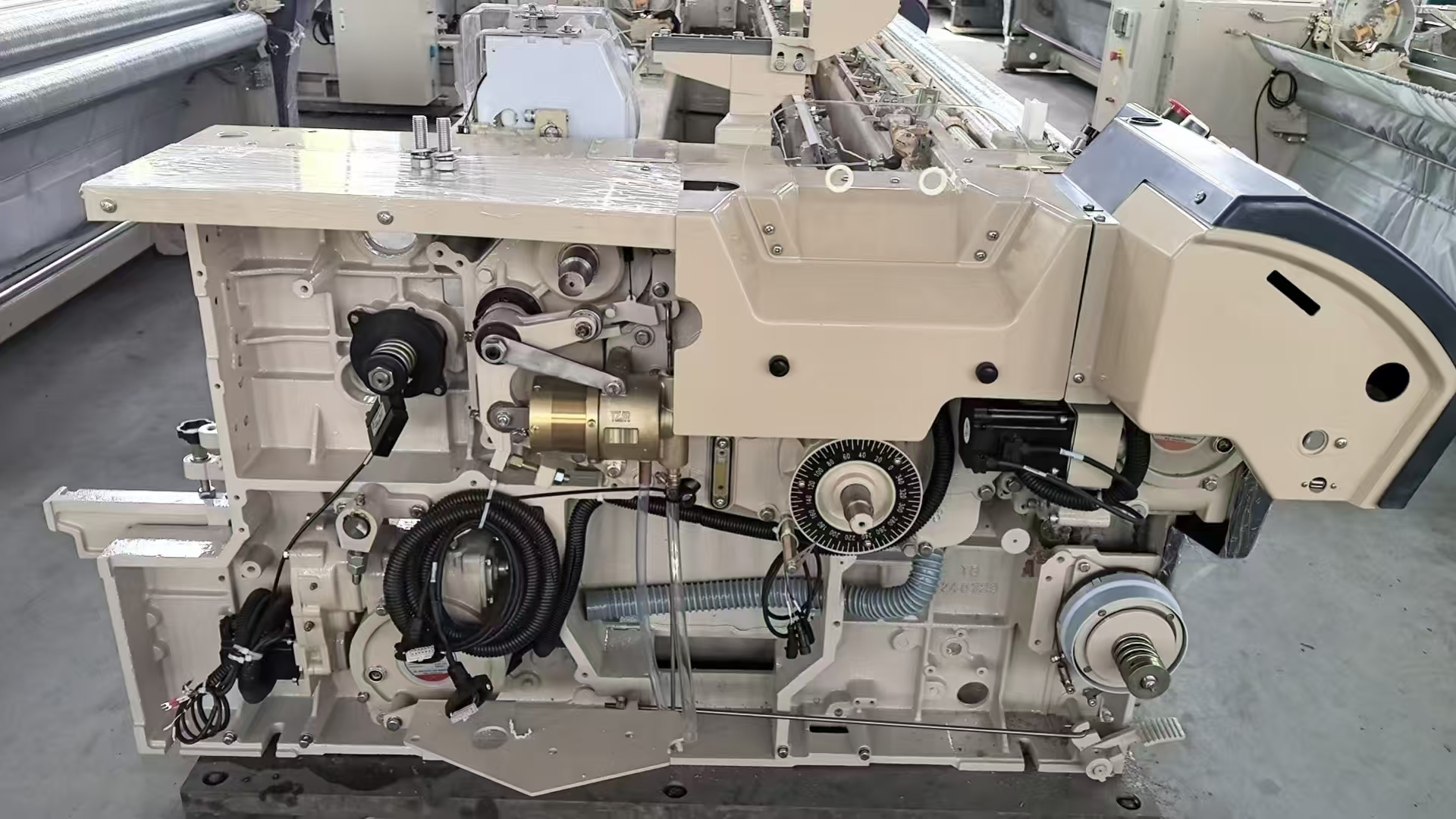

JW8100 HIGH SPEED HEAVY WATER JET LOOM

Use integrated wall boards to improve the frame structure, beat-up mechanism, and shedding. Through optimized design, the high-speed performance and stability of the loom are significantly improved compared to the original model.

Key Features:

1. Short-stroke weft insertion adapts to high-speed weaving, reducing reed damage to the fabric. A robust frame structure and reinforced warp feed device shorten the fabric width before weaving, significantly improving weft insertion performance, especially with six-section weft insertion, achieving higher levels of speed and quality.
2. Shortened weaving path — Shortening the distance between the take-up roller and the fabric from the reed end reduces springback and improves fabric exit stability. A shorter weaving path ensures stable weaving. It is suitable for a wide range of fabrics, from fine to roving, from narrow to wide, and even unbalanced fabrics, enabling the production of a wider variety of fabric products.
3. Enhanced frame stability — Increased longitudinal support in the frame improves frame stability. The redesigned frame structure slopes the warp path outwards from the weft end, shortening the fabric width before weaving. This allows for stable weaving even at high density. The warp positioning line is lowered to 900mm based on ergonomic principles. This significantly improves weft insertion performance and the weaver's operational flexibility.

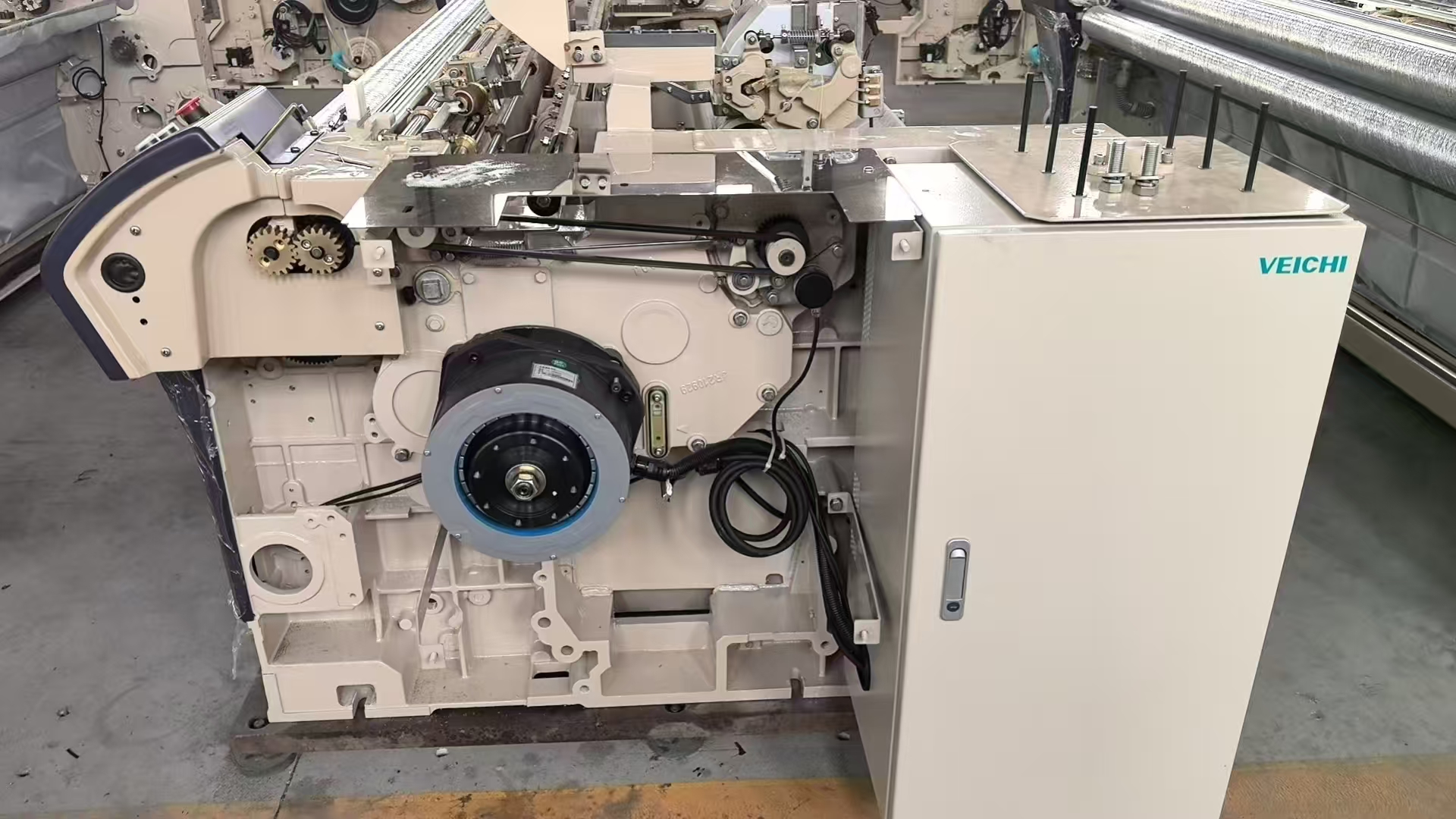

4. Energy-efficient direct-drive motor — The use of a four-pulse direct-drive motor can save 25% to 30% on energy. Thanks to the frequency conversion control system, there's no need to replace pulleys. Loom speed can be changed simply by adjusting parameters, enabling variable weft density and speed weaving of complex fabrics.
5. Reduced vibration design — Eccentric shaft structure reduces weft insertion vibration; a robust frame structure, increased warp strength, and a shortened weaving path significantly improve weft insertion performance, achieving high-speed operation.
6. 1-4 color crank opening or crank 6-link configuration
7. Negative relaxation beam tension stabilization structure
8. The positioning line height is reduced by 40mm, which not only reduces the stress on the loom but also improves stability and makes operation more convenient

JW8100 高速重磅喷水织机

采用一体化墙板改善机架结构、打纬机构和开口机构。通过优化设计，织机的高速性能和稳定性较原机型显著提升。

主要特点：

1. 短行程引纬适应高速织造，减少对织物的筘损伤。坚固的机架结构和加强型送经装置缩短织前织物宽度，显著提升引纬性能，尤其是六段引纬，实现更高速度和质量水平。
2. 缩短织造路径——缩短卷取辊到织物（从筘端）的距离，减少回弹，改善织物出口稳定性。更短的织造路径确保稳定织造。适用于从精细到粗纱、从窄幅到宽幅的各种织物，甚至不均匀织物，能够生产更多种类的织物产品。
3. 增强机架稳定性——增加机架纵向支撑，提高机架稳定性。重新设计的机架结构使经纱路径从引纬端向外倾斜，缩短织前织物宽度，即使在高密度下也能稳定织造。经纱定位线根据人体工程学原理降低至900mm，显著提升引纬性能和织造工的操作灵活性。
4. 节能直驱电机——采用四脉冲直驱电机可节能25%-30%。得益于变频控制系统，无需更换皮带轮。只需调整参数即可改变织机速度，实现可变纬密和复杂织物的速度织造。
5. 减振设计——偏心轴结构减少引纬振动；坚固机架、增加经纱强度和缩短织造路径显著提升引纬性能，实现高速运行。
6. 1-4色曲柄开口或曲柄6连杆配置
7. 负弛度梁张力稳定结构
8. 定位线高度降低40mm，不仅减少织机应力，还提高稳定性，使操作更加便捷

Specifications / 配置清单
